02. From Neuron to Neural Network¶
Important
The notebook is currently under revision.
Info
The following source was used in preparing this material: Andrej Karpathy's lecture on Micrograd.
# This is a graph visualization code from micrograd, no need to understand the details
# https://github.com/karpathy/micrograd/blob/master/trace_graph.ipynb
from graphviz import Digraph
def trace(root):
nodes, edges = set(), set()
def build(v):
if v not in nodes:
nodes.add(v)
for child in v._prev:
edges.add((child, v))
build(child)
build(root)
return nodes, edges
def draw_dot(root, format='svg', rankdir='LR'):
"""
format: png | svg | ...
rankdir: TB (top to bottom graph) | LR (left to right)
"""
assert rankdir in ['LR', 'TB']
nodes, edges = trace(root)
dot = Digraph(format=format, graph_attr={'rankdir': rankdir}) #, node_attr={'rankdir': 'TB'})
for n in nodes:
dot.node(name=str(id(n)), label = "{ %s | data %.3f | grad %.3f }" % (n.label, n.data, n.grad), shape='record')
if n._op:
dot.node(name=str(id(n)) + n._op, label=n._op)
dot.edge(str(id(n)) + n._op, str(id(n)))
for n1, n2 in edges:
dot.edge(str(id(n1)), str(id(n2)) + n2._op)
return dot
Backpropagation¶
Info
This notebook is tightly related to the previous notebook on backpropagation.
The Value class was extended to support subtraction by reusing existing operations. The code that follows is reimplementation of the backpropagation algorithm.
# This is the code from previous lecture
# It is important to understand _backward function
class Value:
def __init__(self, data, _prev=(), _op='', label=''):
self.data = data
self._prev = _prev
self._op = _op
self.label = label
self._backward = lambda: None
self.grad = 0.0
def __add__(self, other):
data = self.data + other.data
out = Value(data, (self, other),'+')
def _backward():
self.grad = 1.0 * out.grad
other.grad = 1.0 * out.grad
out._backward = _backward
return out
def __mul__(self, other):
data = self.data * other.data
out = Value(data, (self, other),'*')
def _backward():
self.grad = other.data * out.grad
other.grad = self.data * out.grad
out._backward = _backward
return out
def __sub__(self, other):
return self + (Value(-1) * other) # self + (-other)
def __repr__(self):
return f'{self.label}: {self.data}'
a = Value(5, label='a')
b = Value(3, label='b')
c = a + b; c.label = 'c'
d = Value(10, label='d')
L = c * d; L.label = 'L'
draw_dot(L)
epochs = 10
learning_rate = 0.05
for _ in range(epochs):
L.grad = 1.0
# backward pass
L._backward()
c._backward()
# optimization (gradient descent)
a.data -= learning_rate * a.grad
b.data -= learning_rate * b.grad
d.data -= learning_rate * d.grad
# forward pass
c = a + b
L = c * d
print(f'Loss: {L.data:.2f}')
Loss: 77.38 Loss: 74.81 Loss: 72.31 Loss: 69.87 Loss: 67.49 Loss: 65.16 Loss: 62.88 Loss: 60.66 Loss: 58.48 Loss: 56.35
Backpropagation with PyTorch¶
Below is an equivalent implementation in PyTorch. Pay attention to requires_grad, no_grad(), and zero_().
The learnable parameters are created with requires_grad=True, which tells PyTorch to track all operations on them and build a computation graph automatically. This replaces the manual _backward logic used earlier.
At the beginning of each epoch, gradients must be cleared using zero_(). PyTorch accumulates gradients by default, so failing to reset them would mix gradients from different iterations.
The forward pass computes the loss using standard operations. Calling backward() on the loss automatically computes all gradients via automatic differentiation. There is no need to call backward functions on intermediate values.
Parameter updates are performed inside a no_grad() block. This prevents PyTorch from tracking the update operations themselves, ensuring that gradient history does not grow across epochs. For large networks, not using torch.no_grad() may strain resources.
import torch
a = torch.tensor(5.0, requires_grad = True);
b = torch.tensor(3.0, requires_grad = True);
c = a + b
d = torch.tensor(10.0,requires_grad = True);
L = c * d
for _ in range(epochs):
# backward pass
L.backward()
# optimization (gradient descent)
with torch.no_grad():
a -= learning_rate * a.grad
b -= learning_rate * b.grad
d -= learning_rate * d.grad
# avoids accumulating gradients
# comment this out to see how it affects the learning
a.grad.zero_()
b.grad.zero_()
d.grad.zero_()
# forward pass
c = a + b
L = c * d
print(f'Loss: {L.data:.2f}')
Loss: 77.38 Loss: 74.81 Loss: 72.31 Loss: 69.87 Loss: 67.49 Loss: 65.16 Loss: 62.88 Loss: 60.66 Loss: 58.48 Loss: 56.35
Activation Function¶
The function f(x) = x * w is a linear function always passing from origin. The real world data, however, will be much more complex, and in order to describe a pattern in the data our Machine Learning model should return a more flexible function. For that, we will do two things: add bias b and bring non-linearity with an activation function. We can choose different non-linear activation functions with the condition that it should be differentiable (otherwise we won't be able to calculate gradients for backpropagation). We will implement sigmoid(logistic) activation function which has the following formula:
Sigmoid function not only makes a linear function non-linear and continuous, but also maps any value of x to be between 0 and 1. It may be useful when we want to predict probabilities for different output classes.
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
def sigmoid(x):
return 1.0 / (1 + np.exp(-x)) # see formula above
# a simple linear function where activation will be applied
def f(x, w=0.5, b=10, activation=None):
out = x * w + b
return activation(out) if activation else out
def plot(f, x, activation=None):
plt.figure(figsize=(4, 4))
x_all = np.linspace(-50, 50, 100)
y_all = f(x_all, activation=activation)
plt.plot(x_all, y_all)
plt.scatter(x, f(x, activation=activation), color='r')
plt.show()
x = -20
plot(f, x)
Now we will plot the exact same point mapped into the non-linear function between 0 and 1. Try out different x values and see the plots.
plot(f, x, sigmoid)
Exercise: Implement other activation functions (e.g. tanh, relu) and see the plot.
Exercise: What could be the distadvantage of using sigmoid activation function?
Artificial Neuron¶
Funcs - Own work (CC0 | Wikimedia Commons)
An artificial neuron is simply a linear function passing through an activation function (e.g. sigmoid(x * w + b)). The illustration above describes an N-dimensional neuron, accepting inputs between x1 ... xn. The function f we had above is a very simple neuron with 1-dimensional input.
Question: What could be input values for predicting the probability of a customer cancelling their subscription?
Before creating our neuron, we will first make some updates to the Value class.
Not only value class should have a sigmoid(x) function, but also it should be able to calculate a derivative for it.
Exercise: Find the derivative of the sigmoid function:
The requires_grad flag (similar to PyTorch) will tell which parameters are trainable and requires gradient calculation and update (Note that this feature is not implemented in micrograd).
For example, it doesn't make sense to modify the real-life training inputs x1 and x2 for our neuron. We shouldn't spend resources for calculating unnecessary gradients. Our goal is to nudge only the weight and bias (i.e. parameter) values, as well as the nodes dependent on them, in order to minimize the eventual loss.
class Value:
def __init__(self, data, _prev=(), _op='', requires_grad=False, label=''):
self.data = data
self._prev = _prev
self._op = _op
self.label = label
self._backward = lambda: None
self.grad = 0.0
self.requires_grad = requires_grad
def __add__(self, other):
data = self.data + other.data
out = Value(data, (self, other), '+', self.requires_grad or other.requires_grad)
def _backward():
if self.requires_grad:
self.grad = 1.0 * out.grad
if other.requires_grad:
other.grad = 1.0 * out.grad
out._backward = _backward
return out
def __mul__(self, other):
data = self.data * other.data
out = Value(data, (self, other), '*', self.requires_grad or other.requires_grad)
def _backward():
if self.requires_grad:
self.grad = other.data * out.grad
if other.requires_grad:
other.grad = self.data * out.grad
out._backward = _backward
return out
def __sub__(self, other):
return self + (Value(-1) * other) # self + (-other)
def sigmoid(self):
s = 1.0 / (1 + np.exp(-self.data))
out = Value(s, (self, ), 'sigmoid', self.requires_grad)
def _backward():
if self.requires_grad:
self.grad = s * (1.0 - s) * out.grad
out._backward = _backward
return out
def __repr__(self):
return f'Value({self.data:.4f})'
We will initially implement a simple Neuron class in 3D (2-dimensional input values and an output value). The function will have two inputs x1 and x2, which will become Value objects. Their weights w1 and w2 will determine how much input (e.g. age of a customer) influences outcome.
from mpl_toolkits.mplot3d import Axes3D
class Neuron:
def __init__(self):
self.w1 = Value(np.random.uniform(-1, 1), label='w1', requires_grad=True)
self.w2 = Value(np.random.uniform(-1, 1), label='w2', requires_grad=True)
self.b = Value(0, label='b', requires_grad=True)
def __call__(self, x1, x2):
out = x1 * self.w1 + x2 * self.w2 + self.b
return out.sigmoid()
# this code here is for plotting, no need to understand, works for only 3D
def plot(self):
x1_vals = np.linspace(-5, 5, 100)
x2_vals = np.linspace(-5, 5, 100)
X1, X2 = np.meshgrid(x1_vals, x2_vals)
Z = np.zeros_like(X1)
for i in range(X1.shape[0]):
for j in range(X1.shape[1]):
x1 = Value(X1[i, j])
x2 = Value(X2[i, j])
output = self(x1, x2)
Z[i, j] = output.data
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(111, projection='3d')
ax.plot_surface(X1, X2, Z, cmap='viridis')
ax.set_title(f'Neuron Output with Sigmoid Activation)')
plt.show()
Now we can initialize our inputs and neuron to see our computation graph. Our loss will be simple: the ground truth label y minus the predicted probability. Let's assume that, our input values x1 and x2 correspond to a customer who made the purchase (y = 1). We will try out both activation functions and see their plots.
x1 = Value(2, label='x1')
x2 = Value(3, label='x2')
y = Value(1, label= 'y')
n = Neuron()
pred = n(x1, x2); pred.label = 'pred'
L = y - pred; L.label = 'loss'
draw_dot(L)

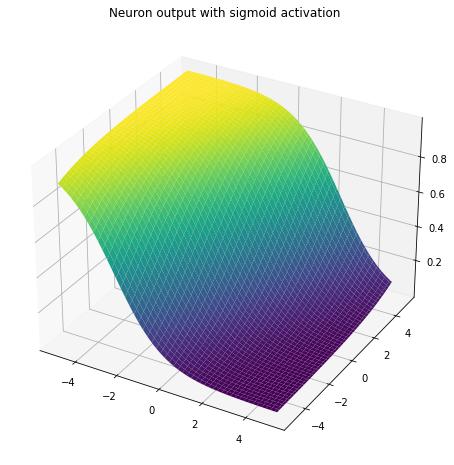

n.plot()
The ground truth label 1 tells us that we should push our probability towards 1.0. In other words, as our loss L here is a simple error value corresponding to 1 - prob, we should try to minimize the loss down to zero with backpropagation. However, our computation graph is bigger than how it was before. The _backward pass function we call manually on each node is not scalable. Ideally, we should have a single function backward() to calculate all the gradients, which we previously saw in the PyTorch implementation. For that, we will need to sort the nodes of the computation graph (in this case, from input/weight nodes until the probability node). We can achieve that with a topological sort function implemented for micrograd.
topo = []
visited = set()
def build_topo(v):
if v not in visited:
visited.add(v)
for child in v._prev:
build_topo(child)
topo.append(v)
build_topo(pred)
topo
[Value(2.0000), Value(-0.7886), Value(-1.5772), Value(3.0000), Value(0.0694), Value(0.2081), Value(-1.3691), Value(0.0000), Value(-1.3691), Value(0.2028)]
We will integrate topological sort into our Value object and implement complete backward pass. We can also add a simple gradient descent function optimize() which will use this topology. Finally, instead of overriding gradients (=), we will accumulate them (+=) to avoid gradient update bugs when using the same node more than once in an operation. And as a consequence, we will have to reset gradients with zero_() (similar to PyTorch) so that the gradients of different backward passes will not affect each other (it does the exact same thing as self.grad = 0.0 was doing before gradient accumulation). Although, to be precise, zero_() function should reset only the gradient of self, and it is actually a function called zero_grad() of optimizer in PyTorch which resets gradients accross all nodes.
class Value:
def __init__(self, data, _prev=(), _op='', requires_grad=False, label=''):
self.data = data
self._prev = _prev
self._op = _op
self.label = label
self._backward = lambda: None
self.grad = 0.0
self.requires_grad = requires_grad
self.topo = self.build_topo()
self.params = [node for node in self.topo if node.requires_grad]
def __add__(self, other):
data = self.data + other.data
out = Value(data, (self, other), '+', self.requires_grad or other.requires_grad)
def _backward():
if self.requires_grad:
self.grad += 1.0 * out.grad
if other.requires_grad:
other.grad += 1.0 * out.grad
out._backward = _backward
return out
def __mul__(self, other):
data = self.data * other.data
out = Value(data, (self, other), '*', self.requires_grad or other.requires_grad)
def _backward():
if self.requires_grad:
self.grad += other.data * out.grad
if other.requires_grad:
other.grad += self.data * out.grad
out._backward = _backward
return out
def __sub__(self, other):
return self + (Value(-1) * other) # self + (-other)
def sigmoid(self):
s = 1.0 / (1 + np.exp(-self.data))
out = Value(s, (self, ), 'sigmoid', self.requires_grad)
def _backward():
if self.requires_grad:
self.grad += s * (1.0 - s) * out.grad
out._backward = _backward
return out
def build_topo(self):
# topological order all of the children in the graph
topo = []
visited = set()
def _build_topo(node):
if node not in visited:
visited.add(node)
for child in node._prev:
_build_topo(child)
topo.append(node)
_build_topo(self)
return topo
def backward(self):
if self.requires_grad:
self.grad = 1.0
for node in reversed(self.params):
node._backward()
def optimize(self, learning_rate=0.01):
for node in self.params:
node.data -= learning_rate * node.grad
def zero_(self):
self.grad = 0.0
def zero_grad(self):
for node in self.params:
node.grad = 0.0
def __repr__(self):
return f'Value({self.data})'
In addition to the _backward() function which calculated the derivatives for only immediate previous nodes, we now have the backward() function which calculates derivates for all the nodes (we also won't forget to set the gradient to 1.0 in the beginning). Once we plot the graph, pay attention that the input and leaf node gradients which we have no control over are not calculated, thanks to requires_grad.
x1 = Value(2, label='x1')
x2 = Value(5, label='x2')
y = Value(1, label= 'y')
n = Neuron()
pred = n(x1, x2); pred.label = 'pred'
L = y - pred; L.label = 'loss'
L.backward()
draw_dot(L)
We can finally implement complete backpropogatation with the goal of increasing the final probability to 1.0 (decreasing the loss down to zero).
# gradient descent
L.optimize()
# forward pass
pred = n(x1, x2); pred.label = 'pred'
L = y - pred; L.label = 'loss'
draw_dot(L)
Let's repeat the backpropagation in multiple epochs until we achieve a minimal loss. We will also print the parameters to see when our neuron function returns a maximum probability for the given input values. And we will make sure to not forget to reset the gradients.
while True:
L.zero_grad()
# backward pass
L.backward()
# gradient descent
L.optimize()
# forward pass
pred = n(x1, x2);
L = y - pred;
print(f'Loss {L.data:.4f}')
if L.data < 0.01:
print(f'\nInputs: {x1} {x2}')
print(f'Parameters: {n.w1} {n.w2} {n.b}')
print(f'Prediction Probability: {pred.data}')
break
Loss 0.0148 Loss 0.0148 Loss 0.0147 Loss 0.0147 Loss 0.0146 Loss 0.0145 Loss 0.0145 Loss 0.0144 Loss 0.0144 Loss 0.0143 Loss 0.0142 Loss 0.0142 Loss 0.0141 Loss 0.0141 Loss 0.0140 Loss 0.0139 Loss 0.0139 Loss 0.0138 Loss 0.0138 Loss 0.0137 Loss 0.0137 Loss 0.0136 Loss 0.0136 Loss 0.0135 Loss 0.0134 Loss 0.0134 Loss 0.0133 Loss 0.0133 Loss 0.0132 Loss 0.0132 Loss 0.0131 Loss 0.0131 Loss 0.0130 Loss 0.0130 Loss 0.0129 Loss 0.0129 Loss 0.0128 Loss 0.0128 Loss 0.0127 Loss 0.0127 Loss 0.0127 Loss 0.0126 Loss 0.0126 Loss 0.0125 Loss 0.0125 Loss 0.0124 Loss 0.0124 Loss 0.0123 Loss 0.0123 Loss 0.0122 Loss 0.0122 Loss 0.0122 Loss 0.0121 Loss 0.0121 Loss 0.0120 Loss 0.0120 Loss 0.0119 Loss 0.0119 Loss 0.0119 Loss 0.0118 Loss 0.0118 Loss 0.0117 Loss 0.0117 Loss 0.0117 Loss 0.0116 Loss 0.0116 Loss 0.0115 Loss 0.0115 Loss 0.0115 Loss 0.0114 Loss 0.0114 Loss 0.0113 Loss 0.0113 Loss 0.0113 Loss 0.0112 Loss 0.0112 Loss 0.0112 Loss 0.0111 Loss 0.0111 Loss 0.0111 Loss 0.0110 Loss 0.0110 Loss 0.0109 Loss 0.0109 Loss 0.0109 Loss 0.0108 Loss 0.0108 Loss 0.0108 Loss 0.0107 Loss 0.0107 Loss 0.0107 Loss 0.0106 Loss 0.0106 Loss 0.0106 Loss 0.0105 Loss 0.0105 Loss 0.0105 Loss 0.0104 Loss 0.0104 Loss 0.0104 Loss 0.0103 Loss 0.0103 Loss 0.0103 Loss 0.0103 Loss 0.0102 Loss 0.0102 Loss 0.0102 Loss 0.0101 Loss 0.0101 Loss 0.0101 Loss 0.0100 Loss 0.0100 Loss 0.0100 Inputs: Value(2) Value(5) Parameters: Value(0.15289672859342332) Value(0.8555124993367387) Value(0.013701999952082168) Prediction Probability: 0.9900191690162561
N-dimensional Neuron¶
We have just now trained our 2-dimensional input neuron to find suitable parameter values for achieving a maximum probability for input values x1 and x2. Now we would like to create N-dimensional neuron which will accept much more inputs, similar to what we saw in the illustration of artificial neuron: x1 ... xn. As a consequence, our neuron will have to learn the parameter values for N-dimensional weights w1 ... wn.
class Neuron:
def __init__(self, N):
self.W = [Value(np.random.uniform(-1, 1), label=f'w{i}', requires_grad=True) for i in range(N)]
self.b = Value(0, label='b', requires_grad=True)
def __call__(self, X):
out = sum((x * w for x, w in zip(X, self.W)), self.b)
return out.sigmoid()
We will now see the training output of our N-dimensional neuron which will accept N Value inputs as a list. Note that our Neuron which implements sigmoid (logistic) activation is known as Logistic Regression.
X = [Value(x, label=f'x{i}') for i, x in enumerate([5, 0.4, -1, -2])]
n = Neuron(len(X))
pred = n(X); pred.label = 'pred'
L = y - pred; L.label = 'loss'
draw_dot(L)
while True:
L.zero_grad()
# backward pass
L.backward()
# gradient descent
L.optimize()
# forward pass
pred = n(X)
L = y - pred
print(f'Loss {L.data:.4f}')
if L.data < 0.01:
print(f'\nInputs: {X}')
print(f'Parameters: {n.W} {n.b}')
print(f'Prediction Probability: {pred.data}')
break
Loss 0.1273 Loss 0.1235 Loss 0.1199 Loss 0.1165 Loss 0.1132 Loss 0.1101 Loss 0.1072 Loss 0.1043 Loss 0.1016 Loss 0.0991 Loss 0.0966 Loss 0.0943 Loss 0.0920 Loss 0.0899 Loss 0.0878 Loss 0.0858 Loss 0.0839 Loss 0.0821 Loss 0.0804 Loss 0.0787 Loss 0.0770 Loss 0.0755 Loss 0.0740 Loss 0.0725 Loss 0.0711 Loss 0.0698 Loss 0.0685 Loss 0.0672 Loss 0.0660 Loss 0.0648 Loss 0.0637 Loss 0.0626 Loss 0.0615 Loss 0.0605 Loss 0.0595 Loss 0.0585 Loss 0.0576 Loss 0.0567 Loss 0.0558 Loss 0.0549 Loss 0.0541 Loss 0.0533 Loss 0.0525 Loss 0.0517 Loss 0.0510 Loss 0.0503 Loss 0.0496 Loss 0.0489 Loss 0.0482 Loss 0.0476 Loss 0.0469 Loss 0.0463 Loss 0.0457 Loss 0.0451 Loss 0.0445 Loss 0.0440 Loss 0.0434 Loss 0.0429 Loss 0.0424 Loss 0.0419 Loss 0.0414 Loss 0.0409 Loss 0.0404 Loss 0.0399 Loss 0.0395 Loss 0.0390 Loss 0.0386 Loss 0.0382 Loss 0.0378 Loss 0.0373 Loss 0.0369 Loss 0.0366 Loss 0.0362 Loss 0.0358 Loss 0.0354 Loss 0.0351 Loss 0.0347 Loss 0.0344 Loss 0.0340 Loss 0.0337 Loss 0.0334 Loss 0.0330 Loss 0.0327 Loss 0.0324 Loss 0.0321 Loss 0.0318 Loss 0.0315 Loss 0.0312 Loss 0.0309 Loss 0.0307 Loss 0.0304 Loss 0.0301 Loss 0.0298 Loss 0.0296 Loss 0.0293 Loss 0.0291 Loss 0.0288 Loss 0.0286 Loss 0.0283 Loss 0.0281 Loss 0.0279 Loss 0.0277 Loss 0.0274 Loss 0.0272 Loss 0.0270 Loss 0.0268 Loss 0.0266 Loss 0.0264 Loss 0.0262 Loss 0.0260 Loss 0.0258 Loss 0.0256 Loss 0.0254 Loss 0.0252 Loss 0.0250 Loss 0.0248 Loss 0.0246 Loss 0.0244 Loss 0.0243 Loss 0.0241 Loss 0.0239 Loss 0.0238 Loss 0.0236 Loss 0.0234 Loss 0.0233 Loss 0.0231 Loss 0.0229 Loss 0.0228 Loss 0.0226 Loss 0.0225 Loss 0.0223 Loss 0.0222 Loss 0.0220 Loss 0.0219 Loss 0.0217 Loss 0.0216 Loss 0.0215 Loss 0.0213 Loss 0.0212 Loss 0.0211 Loss 0.0209 Loss 0.0208 Loss 0.0207 Loss 0.0205 Loss 0.0204 Loss 0.0203 Loss 0.0202 Loss 0.0200 Loss 0.0199 Loss 0.0198 Loss 0.0197 Loss 0.0196 Loss 0.0195 Loss 0.0193 Loss 0.0192 Loss 0.0191 Loss 0.0190 Loss 0.0189 Loss 0.0188 Loss 0.0187 Loss 0.0186 Loss 0.0185 Loss 0.0184 Loss 0.0183 Loss 0.0182 Loss 0.0181 Loss 0.0180 Loss 0.0179 Loss 0.0178 Loss 0.0177 Loss 0.0176 Loss 0.0175 Loss 0.0174 Loss 0.0173 Loss 0.0172 Loss 0.0172 Loss 0.0171 Loss 0.0170 Loss 0.0169 Loss 0.0168 Loss 0.0167 Loss 0.0166 Loss 0.0166 Loss 0.0165 Loss 0.0164 Loss 0.0163 Loss 0.0162 Loss 0.0161 Loss 0.0161 Loss 0.0160 Loss 0.0159 Loss 0.0158 Loss 0.0158 Loss 0.0157 Loss 0.0156 Loss 0.0155 Loss 0.0155 Loss 0.0154 Loss 0.0153 Loss 0.0153 Loss 0.0152 Loss 0.0151 Loss 0.0150 Loss 0.0150 Loss 0.0149 Loss 0.0148 Loss 0.0148 Loss 0.0147 Loss 0.0146 Loss 0.0146 Loss 0.0145 Loss 0.0145 Loss 0.0144 Loss 0.0143 Loss 0.0143 Loss 0.0142 Loss 0.0141 Loss 0.0141 Loss 0.0140 Loss 0.0140 Loss 0.0139 Loss 0.0138 Loss 0.0138 Loss 0.0137 Loss 0.0137 Loss 0.0136 Loss 0.0136 Loss 0.0135 Loss 0.0134 Loss 0.0134 Loss 0.0133 Loss 0.0133 Loss 0.0132 Loss 0.0132 Loss 0.0131 Loss 0.0131 Loss 0.0130 Loss 0.0130 Loss 0.0129 Loss 0.0129 Loss 0.0128 Loss 0.0128 Loss 0.0127 Loss 0.0127 Loss 0.0126 Loss 0.0126 Loss 0.0125 Loss 0.0125 Loss 0.0124 Loss 0.0124 Loss 0.0123 Loss 0.0123 Loss 0.0122 Loss 0.0122 Loss 0.0122 Loss 0.0121 Loss 0.0121 Loss 0.0120 Loss 0.0120 Loss 0.0119 Loss 0.0119 Loss 0.0118 Loss 0.0118 Loss 0.0118 Loss 0.0117 Loss 0.0117 Loss 0.0116 Loss 0.0116 Loss 0.0116 Loss 0.0115 Loss 0.0115 Loss 0.0114 Loss 0.0114 Loss 0.0114 Loss 0.0113 Loss 0.0113 Loss 0.0112 Loss 0.0112 Loss 0.0112 Loss 0.0111 Loss 0.0111 Loss 0.0110 Loss 0.0110 Loss 0.0110 Loss 0.0109 Loss 0.0109 Loss 0.0109 Loss 0.0108 Loss 0.0108 Loss 0.0108 Loss 0.0107 Loss 0.0107 Loss 0.0107 Loss 0.0106 Loss 0.0106 Loss 0.0106 Loss 0.0105 Loss 0.0105 Loss 0.0104 Loss 0.0104 Loss 0.0104 Loss 0.0104 Loss 0.0103 Loss 0.0103 Loss 0.0103 Loss 0.0102 Loss 0.0102 Loss 0.0102 Loss 0.0101 Loss 0.0101 Loss 0.0101 Loss 0.0100 Loss 0.0100 Loss 0.0100 Inputs: [Value(5), Value(0.4), Value(-1), Value(-2)] Parameters: [Value(0.6195076510193583), Value(0.988462556700058), Value(0.6814715991439656), Value(-0.8498024629867303)] Value(0.08692061974641961) Prediction Probability: 0.9900282484345291
Artificial Neural Network¶
Glosser.ca - Own work, Derivative of Artificial neural network.svg (CC BY-SA 3.0 | Wikimedia Commons)
We managed to train our single neuron to learn a function for our input values. In reality, however, data is much more complex and we need to learn more complication functions. How to achieve that? By chaining many neurons together, similar to biological neuron. Each neuron will basically learn some portion of the overall function.
What we see above is an illustration of an artificial neural network. In the input layer we have three neurons, each separately accepting N-dimensional input values. The output values of each neuron are then fully connected, as inputs to the hidden layer with four neurons (note that there can be more than one hidden layer). And finally, the output of hidden layer neurons are passed as inputs to the output layer, which may, for example, predict probability scores for two classes.
We will now try to implement a fully connected feedforward neural network, which is often referred to as Multi-Layer Perceptron (MLP).
class Layer:
def __init__(self, N, count):
self.neurons = [Neuron(N) for _ in range(count)]
def __call__(self, X):
outs = [n(X) for n in self.neurons]
return outs[0] if len(outs) == 1 else outs # flattening dimension if a single element
The code above creates a list of count number of neurons, each accepting N dimensional input. Let's build our layers shown in the illustration above and connect them. Note that the input dimension of the next layer is the amount of neurons in the previous layer.
# input data and its dimension
X = [Value(x, label=f'x{i}') for i, x in enumerate([1, 4, -3, -2, 3])]
N = len(X)
# creating layers
in_layer = Layer(N, 3)
hid_layer = Layer(3, 4)
out_layer = Layer(4, 2)
# output of each layer is input to the next
X_hidden = in_layer(X)
X_output = hid_layer(X_hidden)
out = out_layer(X_output)
# let's plot either one of the outputs
draw_dot(out[0])
We will further abstract away the neuron and layer creation inside the MLP class. We will then reimplement the exact same network.
class MLP:
def __init__(self, N, counts):
dims = [N] + counts # concatenates dimensions
self.layers = [Layer(dims[i], dims[i+1]) for i in range(len(dims)-1)]
def __call__(self, X):
out = X
for layer in self.layers:
out = layer(out)
return out
nn = MLP(N, [3, 4, 2])
out = nn(X)
draw_dot(out[0]) # out[1] will return the second output
Iris Dataset¶
It is time to judge our network by applying it to the real dataset. Even though applying neural networks to Fisher's Iris dataset is a little overkill (as the dataset is simple), it will be a nice demonstration of our MLP's capacity.
Iris dataset has 4-dimensional input samples with three possible output classes. We should be able to predict the class of the Iris flower based on the width and height values of its two elements. We will load our dataset and split it into train and test sets.
from sklearn import datasets
from sklearn.model_selection import train_test_split
iris = datasets.load_iris()
X = iris.data # 50x3 4-dimensional samples
y = iris.target # 3 classes (0, 1, 2)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2)
print(f'Train data shape: {X_train.shape}, {y_train.shape}')
print(f'Test data shape: {X_test.shape}, {y_test.shape}')
print(f'Input Samples:\n {X_train[:5]}')
print(f'Labels:\n {y_train[:5]}')
Train data shape: (120, 4), (120,) Test data shape: (30, 4), (30,) Input Samples: [[4.4 2.9 1.4 0.2] [4.7 3.2 1.3 0.2] [6.5 3. 5.5 1.8] [6.4 3.1 5.5 1.8] [6.3 2.5 5. 1.9]] Labels: [0 0 2 2 2]
We should then convert each element to be a Value object. But before that, let's try out two ready scikit-learn classifiers, LogisticRegression and MLPClassifier, the latter of which can be seen as the extension of the former, which we will implement in its simplistic form. As we have already discussed, LogisticRegression is basically our Neuron class which uses sigmoid (logistic) function as its activation. And in fact, Logistic Regression will simply be our MLP with the layer size for just a single neuron. Thanks to numpy vectorization and other optimizations, the sklearn implementations will be extremely quick.
from sklearn.linear_model import LogisticRegression
from sklearn.neural_network import MLPClassifier
from sklearn.metrics import accuracy_score
model = LogisticRegression()
model.fit(X_train, y_train)
preds = model.predict(X_test)
accuracy = accuracy_score(y_test, preds)
print(f"Logistic Regression Accuracy: {accuracy:.2f}")
model = MLPClassifier()
model.fit(X_train, y_train)
preds = model.predict(X_test)
accuracy = accuracy_score(y_test, preds)
print(f"MLP Classifier Accuracy: {accuracy:.2f}")
Logistic Regression Accuracy: 1.00 MLP Classifier Accuracy: 1.00
/usr/local/lib/python3.11/dist-packages/sklearn/neural_network/_multilayer_perceptron.py:691: ConvergenceWarning: Stochastic Optimizer: Maximum iterations (200) reached and the optimization hasn't converged yet. warnings.warn(
When converting labels to Value objects, we can technically scale them down to be between 0 and 1 (by multiplying them to 0.5). Then we can apply the simple Mean Squared Error (MSE). Because there are only three labels and the dataset is small, it will work, yet it will penalize ordinal labels unnecessarily. For example, our loss should give the same penalty if we predict 0 instead of 1 or 2 (it is either one type of flower or another). MSE, however, will give more penalty when predicting 0 instead of 2 and less penalty when predicting 0 instead of 1 because of the imaginary distances between numbers, which do not exist among the real labels.
# converting numpy float arrays into Value lists
# scaling labels to be between 0 and 1 to simplify our code
# again, it is not a right way to treat the labels
X_train = [[Value(x) for x in X] for X in X_train]
X_test = [[Value(x) for x in X] for X in X_test]
y_train = [Value(y) * Value(0.5) for y in y_train]
y_test = [Value(y) * Value(0.5) for y in y_test]
Training Custom MLP Classifier¶
We will now create a class for our model, in the style of scikit-learn models, more specifically MLPClassifier.
As noted above, what we do is simple and will work in this case, but is not right. Ideally, we should initially one hot encode the ground truth labels to describe them with only zeros and ones. Our final layer for multiclass classification, instead of sigmoid activation, should output logits (unprocessed predictions) passing through softmax function. The loss in this case should be Cross Entropy instead of MSE.
Exercise (Advanced): Write code for the correct implementation noted above. See Josh Starmer's (StatQuest) videos which explain its theory, including the Iris dataset, argmax and softmax functions, as well as Cross Entropy.
class Classifier:
def __init__(self, layer_sizes=[2, 3, 1]):
self.layer_sizes = layer_sizes
self.nn = None
self.L = None
self.iterations = 0
def forward(self, Xs):
out = [self.nn(X) for X in Xs]
return out
def predict(self, X_test):
return self.forward(X_test)
def train(self, X_train, y_train, learning_rate=0.01):
preds = self.forward(X_train)
self.L = self.mean_squared_error(y_train, preds)
self.L.zero_grad()
self.L.backward()
self.L.optimize(learning_rate=learning_rate)
print(f'Loss: {self.L.data:.4f}')
def fit(self, X_train, y_train, learning_rate=0.01, num_epochs=50):
if not self.nn: # in order to not restart training if nn exists
self.nn = MLP(len(X_train), self.layer_sizes)
for i in range(num_epochs):
print(f'Training epoch {self.iterations + i + 1}')
self.train(X_train, y_train, learning_rate)
self.iterations += i + 1
def mean_squared_error(self, y_train, preds):
return sum([(y-y_hat)*(y-y_hat) for y, y_hat in zip(y_train, preds)], Value(0))
def score(self, y_test, preds):
return self.mean_squared_error(y_test, preds).data / len(y_test)
def accuracy_score(self, y_test, preds):
# due to incorrect handling of the labels
# we need to scale y_test and preds values back
y_test = [y * Value(2) for y in y_test]
preds = [y_hat * Value(2) for y_hat in preds]
correct = sum(1 for y, y_hat in zip(y_test, preds) if round(y_hat.data) == y.data)
total = len(y_test)
return (correct/total)
Our naive classifer is ready and we can now train our model and note the accuracy. However, unlike the optimized classifiers of the sklearn library, it will be much slower and inefficient. Try out experiments with different layer sizes and learning rates, and notice how it affects the training process and loss. As we have mentioned before, we can implement Logistic Regression by simply passing layer_sizes=[1] to our MLP classifier.
model = Classifier([1])
# model = Classifier([4, 1])
model.fit(X_train, y_train, learning_rate=0.002, num_epochs=30)
Training epoch 61 Loss: 1.3948 Training epoch 62 Loss: 1.3938 Training epoch 63 Loss: 1.3929 Training epoch 64 Loss: 1.3920 Training epoch 65 Loss: 1.3911 Training epoch 66 Loss: 1.3901 Training epoch 67 Loss: 1.3892 Training epoch 68 Loss: 1.3883 Training epoch 69 Loss: 1.3874 Training epoch 70 Loss: 1.3865 Training epoch 71 Loss: 1.3856 Training epoch 72 Loss: 1.3847 Training epoch 73 Loss: 1.3838 Training epoch 74 Loss: 1.3830 Training epoch 75 Loss: 1.3821 Training epoch 76 Loss: 1.3812 Training epoch 77 Loss: 1.3803 Training epoch 78 Loss: 1.3795 Training epoch 79 Loss: 1.3786 Training epoch 80 Loss: 1.3777 Training epoch 81 Loss: 1.3769 Training epoch 82 Loss: 1.3760 Training epoch 83 Loss: 1.3752 Training epoch 84 Loss: 1.3743 Training epoch 85 Loss: 1.3735 Training epoch 86 Loss: 1.3726 Training epoch 87 Loss: 1.3718 Training epoch 88 Loss: 1.3710 Training epoch 89 Loss: 1.3701 Training epoch 90 Loss: 1.3693
preds = model.predict(X_train)
print(f'Custom MLP classifier accuracy on train Data: {model.accuracy_score(y_train, preds):.2f}')
Custom MLP classifier accuracy on train Data: 0.97
preds = model.predict(X_test)
print(f'Custom MLP classifier accuracy on test Data: {model.accuracy_score(y_test, preds):.2f}')
Custom MLP classifier accuracy on test Data: 0.97
for i in range(len(y_test)):
print(y_test[i].data * 2, preds[i].data * 2)
2.0 1.7378279677947062 1.0 1.3786491598121862 2.0 1.7797233124612888 2.0 1.5546211532302696 1.0 0.7808593322180695 1.0 1.1323777346177633 0.0 0.03179964376674919 2.0 1.6900839613983492 2.0 1.818651271834627 2.0 1.5712929781499119 2.0 1.9175600703929185 2.0 1.8478802623012778 2.0 1.8502101169387906 0.0 0.024109593550568645 1.0 1.6944624014543954 1.0 1.1691956406120396 2.0 1.6617236866912894 2.0 1.7796042897673732 1.0 1.186491156964572 2.0 1.7267232886353379 1.0 1.197352283588582 0.0 0.01104177713999268 2.0 1.860650974045892 0.0 0.029735232803150373 1.0 1.021880542808286 1.0 0.7892688298891827 0.0 0.026875629893556307 1.0 1.219772374852777 0.0 0.015342452967957023 2.0 1.5336924121298994
